SPOOLTENNA

Frequency:

• 7.0 - 7.3 MHz (40M)
• 14.1 - 14.35 MHz (20M)
• 21.0 – 21.45 MHz (15M)
• 28.0 – 29.7 MHz (10M)

Power: 100W SSB, 50W CW & digital

Dimensions:

• Diameter=120mm (4.72")
• Thickness=~25mm (0.98")

Weight: 12.5oz

Length: 65ft silicone insulated 20 AWG tinned copper wire

Note: Antenna is factory-tuned, with additional length available for end-user final tuning.

RF Connection: Right-angle BNC female

• Center hole - 8mm (approximately 5/16") for quick deployment using a standard screwdriver as an axle (screwdriver not provided)
• Winding knob for easy set up and tear down
• Two finger holes in the back for easy grip

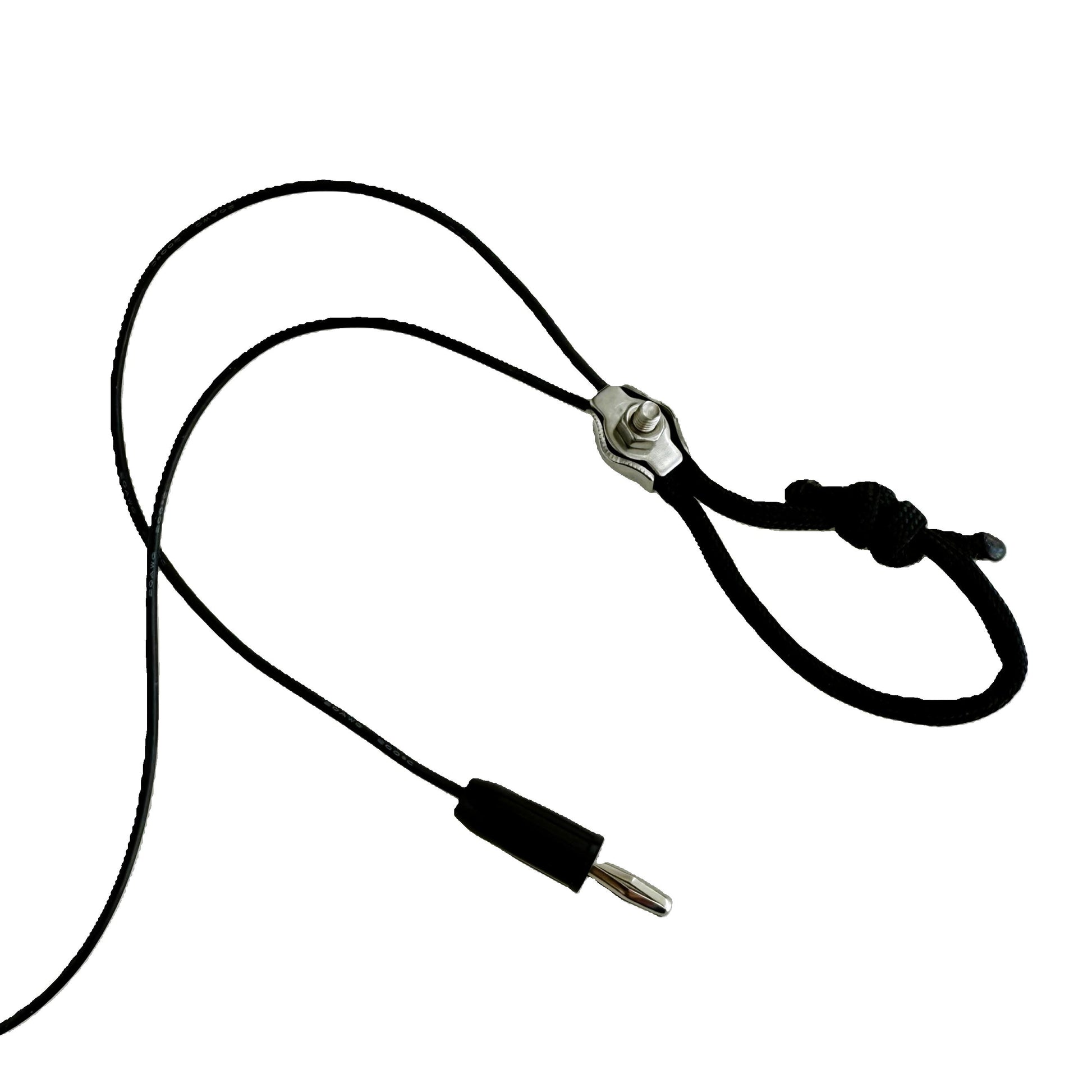

• 4mm banana jack for quick connection/disconnection of radiating element
• 10mm mounting holes on face and back side of the product for mounting or hanging flexibility
• Right-angle BNC connector to align with feedline direction
• Matching circuit captive within the barrel of the spool to protect circuit components
• Strain relief loop on both ends of the radiating element
• Supplied with BongoTies® tie for retaining wire on the spool
• UV-stabilized barrel

Prebuilt Includes:

• SPOOLTENNA PARKS-EFHW4010 (assembled unit)

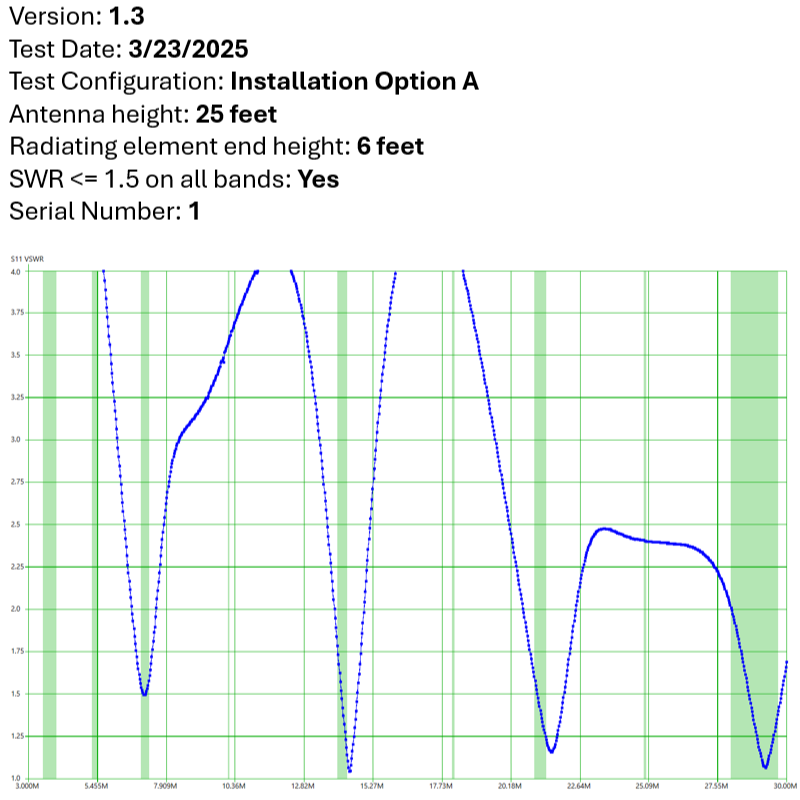

• Field Testing Report for that serial number
• Owner's Manual
• Quick Start Guide
• OPTIONAL: RG-316 25' coax with 5 ferrites (sold separately)
