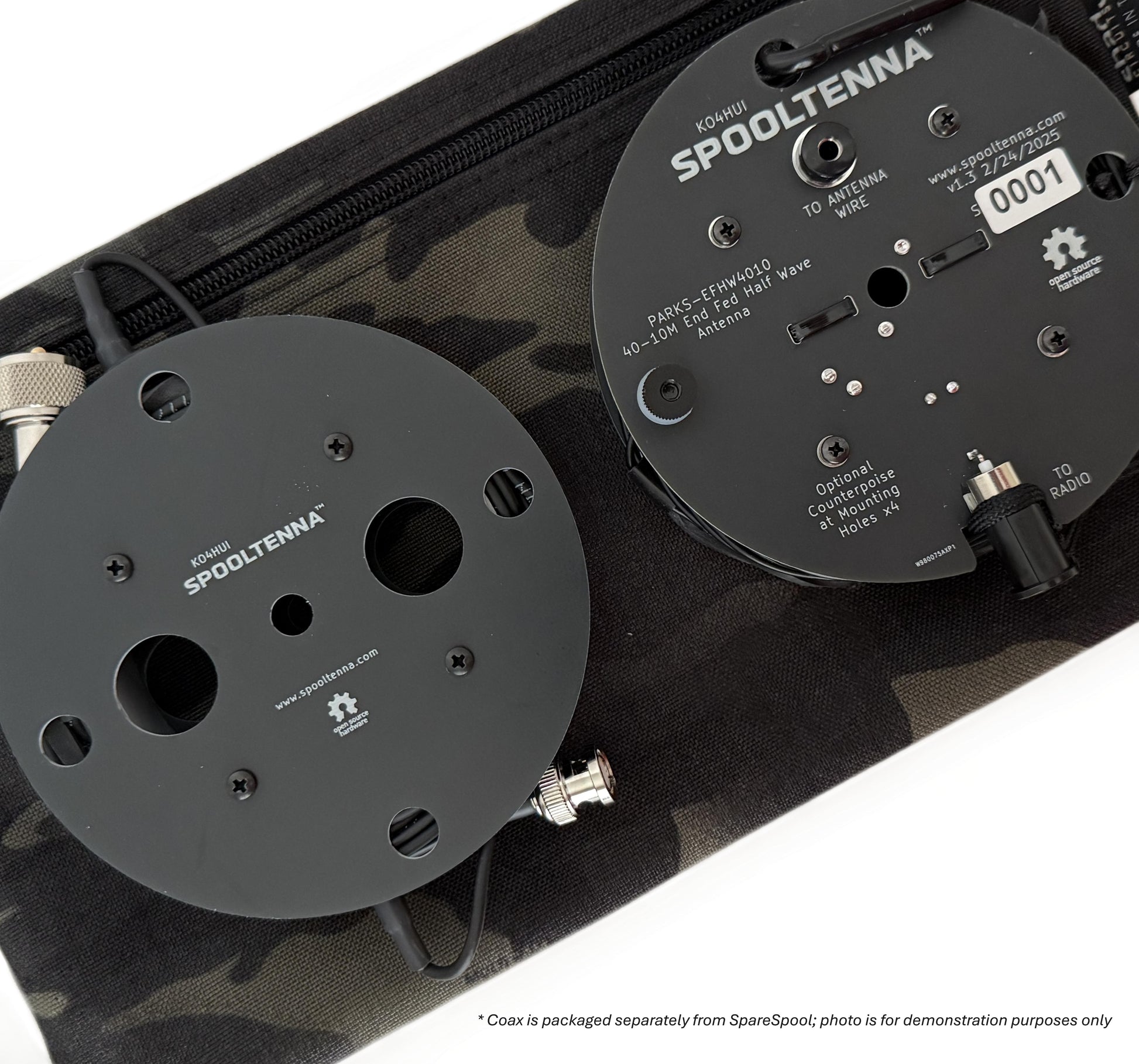

SPOOLTENNA Stealth Bundle

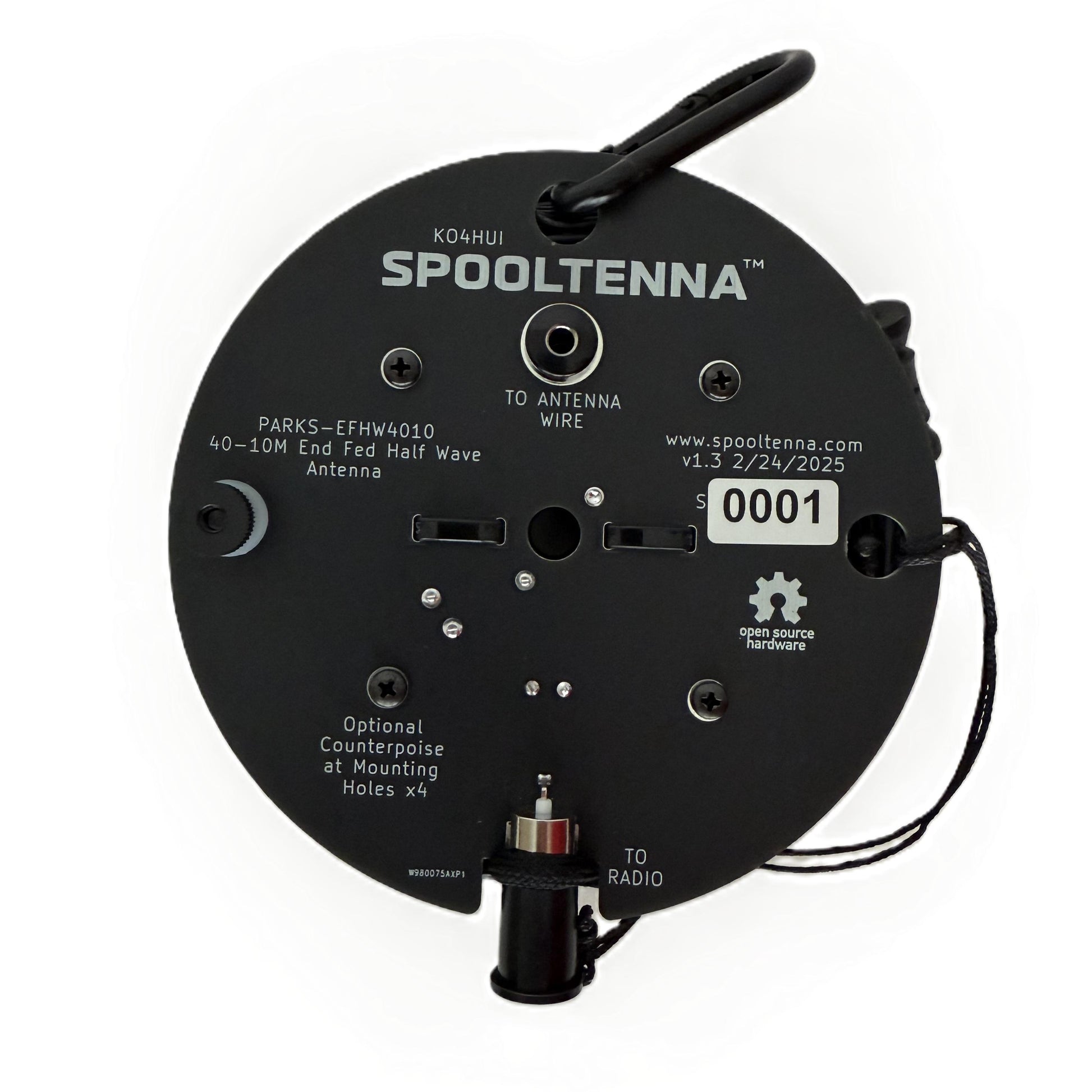

SPOOLTENNA:

• Matte black finish for low-visibility ops
• Blacked-out assembly hardware and black BNC dust cover
• Our standard 20AWG silicone black jacketed wire with black Bongo Tie

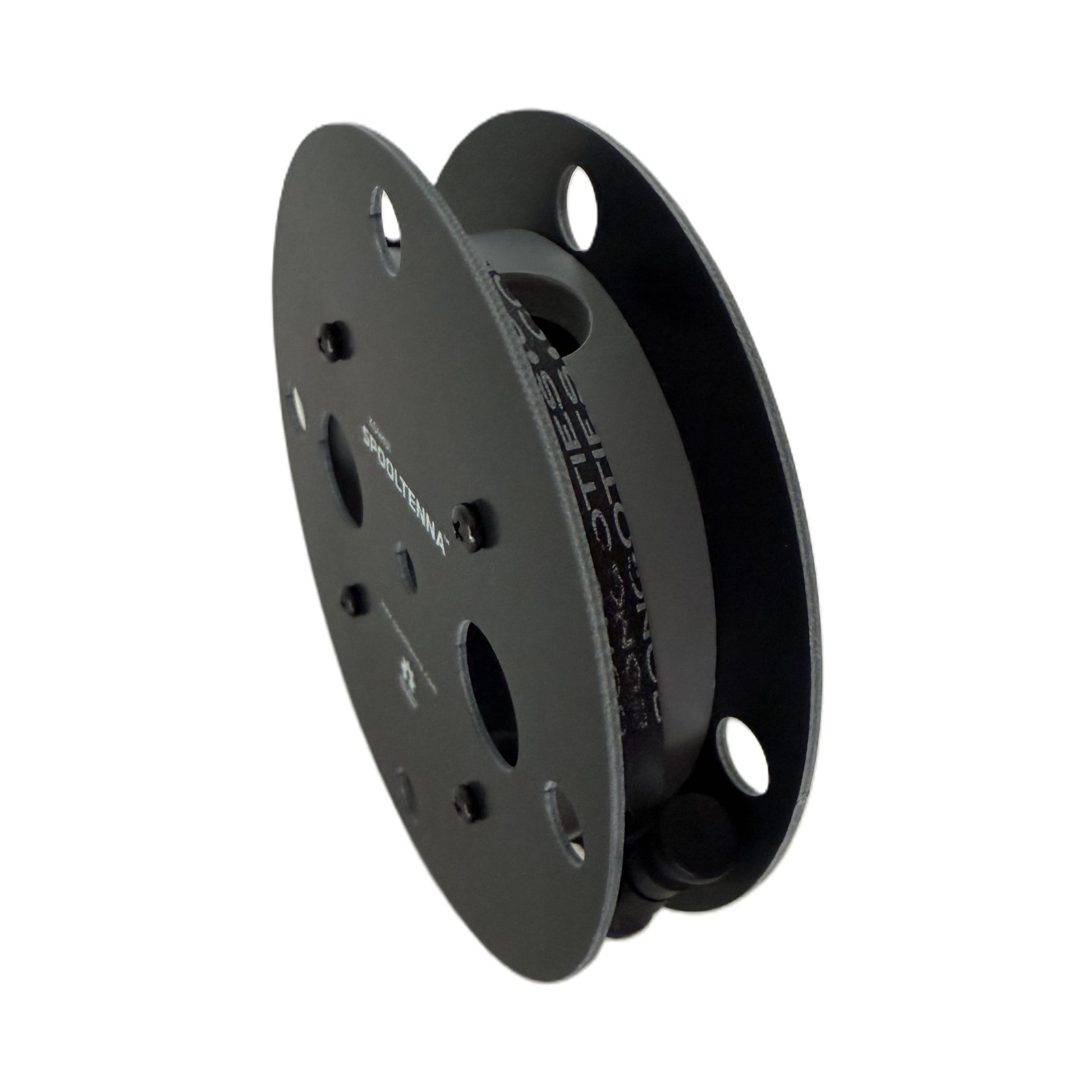

SpareSpool:

• Matte black SpareSpool (plus black Bongo Tie) for coax storage

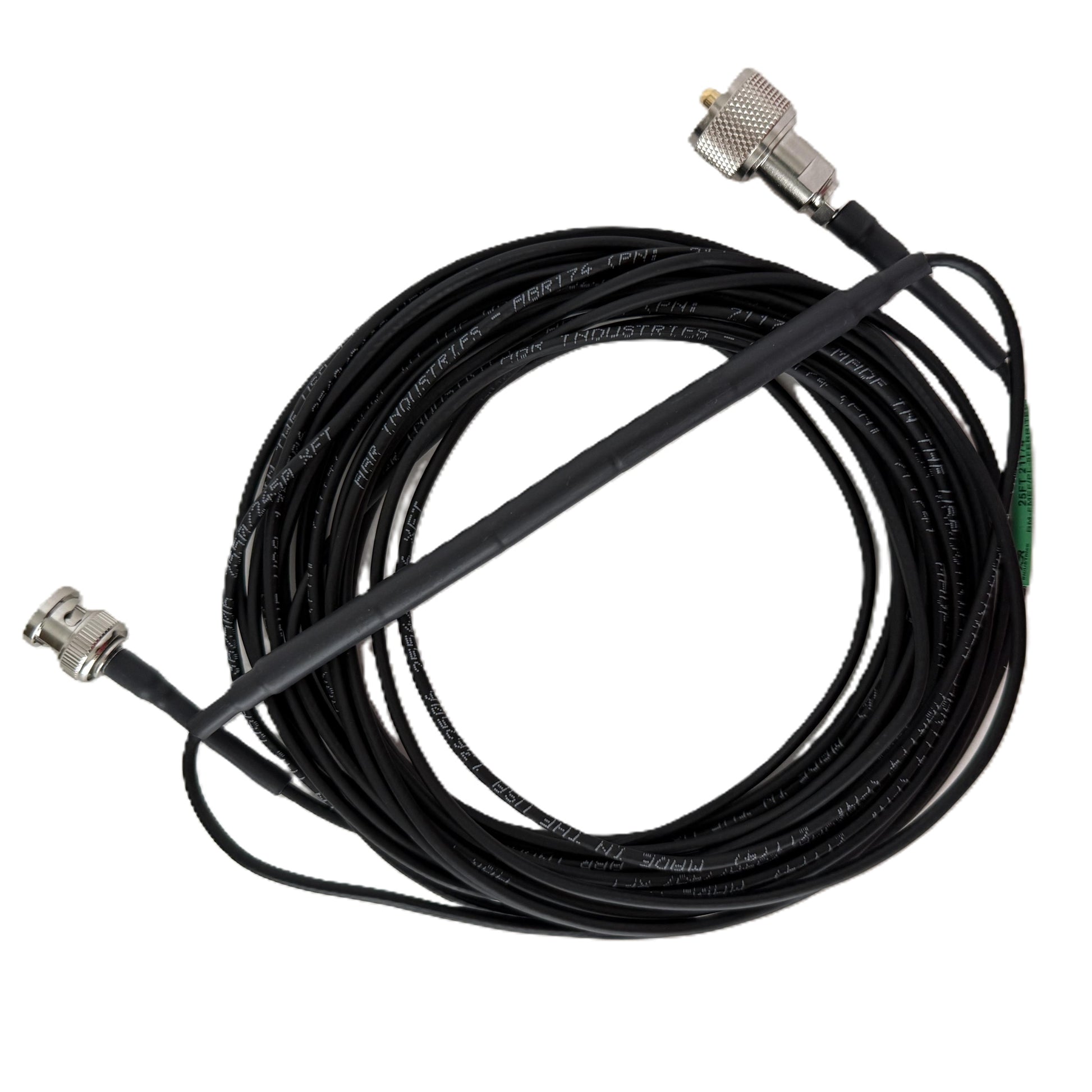

RG-174 Coax:

• Black jacketed, ultra-flexible coax (ABR Industries)
• Integrated common mode choke optimized for use with EFHW antennas
• Terminated with PL-259 and BNC male connectors, eliminating the need for an adapter
• Lighter (and darker!) than our standard RG-316 coax (4.9 oz vs 5.5 oz)

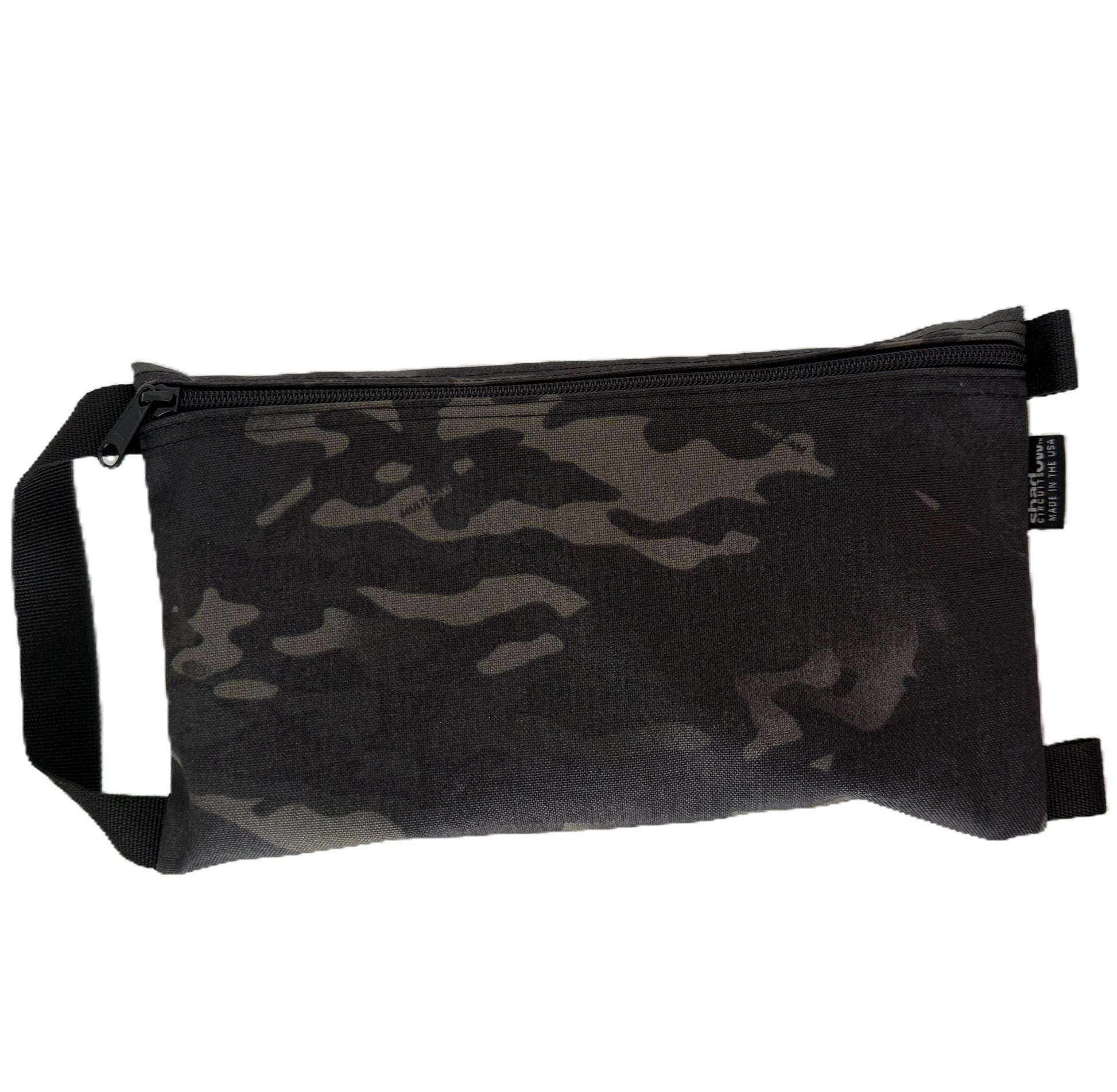

7” x 12” RMS Utility Pouch:

• Black multi-cam, 1000 Denier Cordura Truelock™ MIL-Spec Nylon
• YKK zippers
• Rugged, discreet, and lightweight (2.5 oz)
• Ham-made in the USA (Shadow Circuits)

Same performance and specs as our standard SPOOLTENNA!

Frequency:

• 7.0 - 7.3 MHz (40M)
• 14.1 - 14.35 MHz (20M)
• 21.0 – 21.45 MHz (15M)
• 28.0 – 29.7 MHz (10M)

Power: 100W SSB, 50W CW & digital

Dimensions:

• Diameter=120mm (4.72")
• Thickness=~25mm (0.98")

Weight: 12.5oz

Length: 65ft silicone insulated 20 AWG tinned copper wire with paracord strain relief attached with heavy duty shrink tubing

Note: Antenna is factory-tuned, with additional length available for end-user final tuning.

RF Connection: Right-angle BNC female

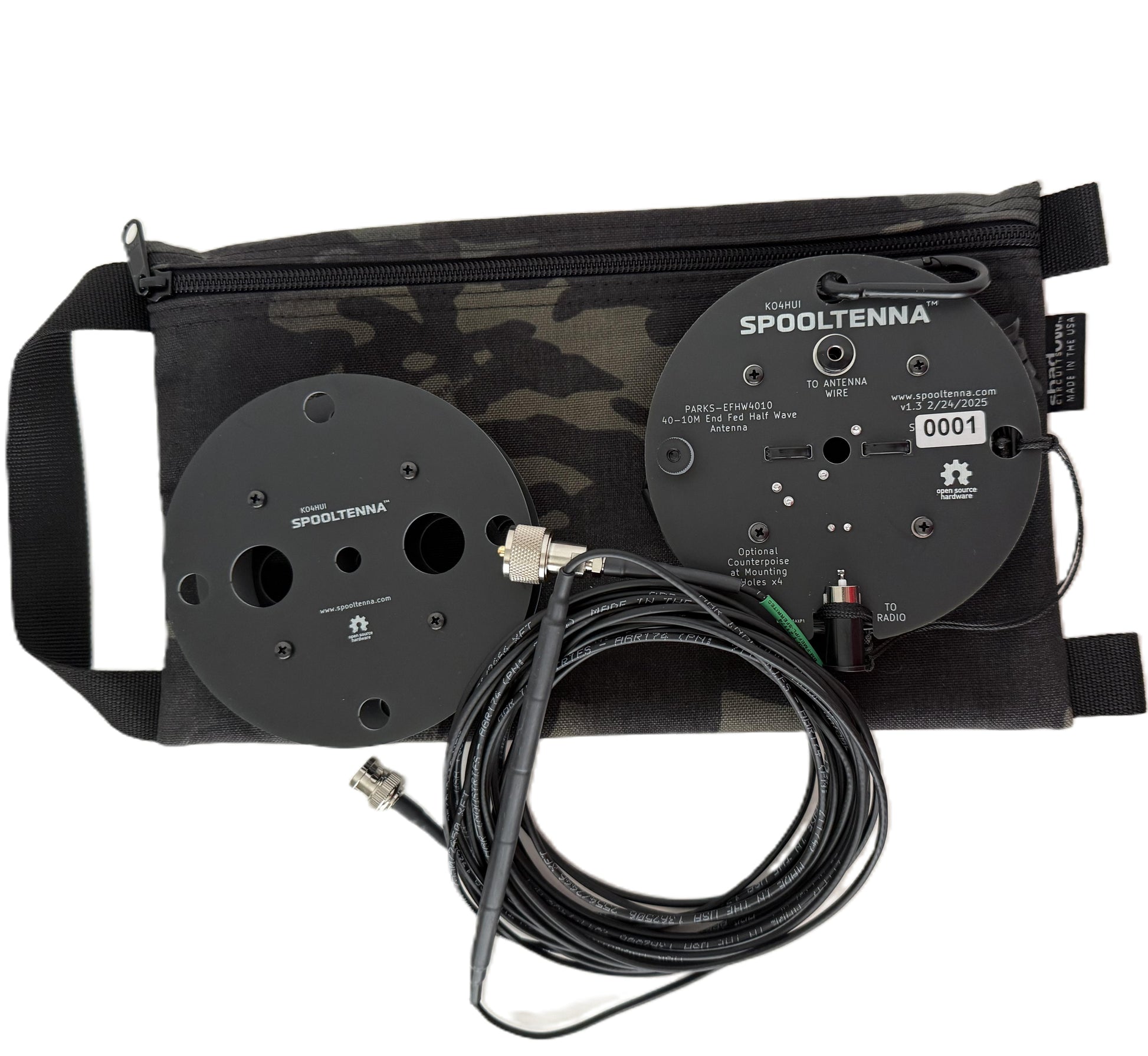

Includes:

• Matte black SPOOLTENNA PARKS-EFHW4010
• Matte black SpareSpool
• RG-174 coax (black)
• 7" x 12" RMS utility pouch (black multi-cam)
• Field Testing Report for that serial number
• Owner's Manual
• Quick Start Guide
